Multitrade Malta – Tellure Rota Wheels and Castors – TR735002
SIGMA ELASTIC RUBBER WHEELS, POLYAMIDE 6 CENTRE, SWIVEL TOP PLATE BRACKET TYPE NL
TR735002
€16.10
- Brand: Tellure Rota

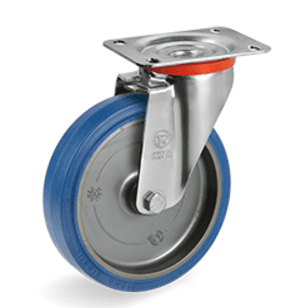

- Wheel / Castor Type: "SIGMA ELASTIC" RUBBER WHEELS, Swivel top plate bracket type NL
- Wheel Diameter: 100mm
- Wheel Width: 40mm
- Height: 128mm
- Top-plate outer dimensions: 100mm x 85mm
- Hole Spacing: 80mm x 60mm
- Hole Width: 9mm
- Offset: 35mm
- Max Load Capacity daN: 150kg
- Weight: 0.85kg
Description
| Wheel description Non-marking Sigma Elastic rubber tread; hardness 70 Shore A. Polyamide 6 centre. Plain bearing, roller bearing or ball bearing bore The plain bearing bore results from a hole in the material forming the centre of the wheel and contains the axle. In the roller bearing bore, the housing is obtained by moulding and contains cylindrical roller bearings with polyamide 6 cage. In the ball Axle Axle composed of ground steel bush with bolt according to UNI EN 24017 and nut according to UNI EN 24032. Swivel top plate bracket type NL Swivel top plate bracket type NL. The plate, the ball race ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted. |
Series 73 ST Range
Uses
Wheels with excellent elasticity features, they are particularly suitable for use on uneven surfaces, in presence of obstacles or for mixed indoor/outdoor uses with medium duty loads.
The good elasticity and rolling resistance guarantee minimum effort, particularly on
uneven surfaces.Technical features
LOAD CAPACITY: 150-450 daN
WHEEL TREAD: Sigma Elastic rubber tread; hardness 70 Shore A; good resistance to wear and to tearing
CENTRE: polyamide 6
BRACKETS:
Wheels with excellent elasticity features, they are particularly suitable for use on uneven surfaces, in presence of obstacles or for mixed indoor/outdoor uses with medium duty loads.
The good elasticity and rolling resistance guarantee minimum effort, particularly on
uneven surfaces.Technical features
LOAD CAPACITY: 150-450 daN
WHEEL TREAD: Sigma Elastic rubber tread; hardness 70 Shore A; good resistance to wear and to tearing
CENTRE: polyamide 6
BRACKETS:
| NL, | M, | P, | P X, |
Environments of use
Designed for industrial environments, even in presence of medium-harsh chemical agents. Not suitable in presence of organic, aromatic solvents, chlorinated substances and hydrocarbons.
Designed for industrial environments, even in presence of medium-harsh chemical agents. Not suitable in presence of organic, aromatic solvents, chlorinated substances and hydrocarbons.
| WEAK ACIDS |  |
WEAK BASES | |
| STRONG ACIDS |  |
STRONG BASES | |
| WATER |  |
HYDROCARBONS | |
| ALCOHOL | |
SOLVENTS | |
Floors
Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles.
They do not damage or mark floors.
Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles.
They do not damage or mark floors.
