Multitrade Malta – Tellure Rota Wheels and Castors – TR609704

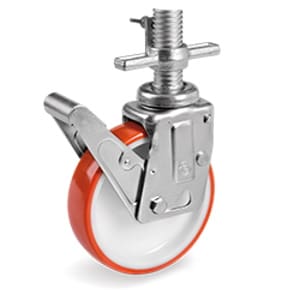

THERMOPLASTIC POLYURETHANE WHEELS, POLYAMIDE 6 CENTRE, SWIVEL BRACKET WITH STEM FOR MOBILE SCAFFOLDINGS
TR609704
€73.30
- Brand: Tellure Rota
- Wheel / Castor Type: SWIVEL BRACKET WITH STEM FOR MOBILE SCAFFOLDINGS
- Wheel Diameter: 150mm
- Wheel Width: 45mm
- Height: 192mm
- Offset: 40mm
- Brake swept radius: 150mm
- Plate Diameter: 83mm
- Threaded Stem Diameter: M38X6
- Threaded Stem length: 500mm
- Max Load Capacity daN: 300kg
Description
Wheel description
Thermoplastic polyurethane tread; hardness 55 Shore D. Polyammide 6 centre.
Plain bearing bore
The plain bearing bore results from a hole in the material forming the centre of the wheel and contains the axle.
Axle
Axle composed of ground steel bush with bolt according to UNI EN 24017 and nut according to UNI EN 24032.
Scaffolding bracket with threaded stem
Swivel top plate bracket for mobile scaffoldings. The plate, the ball rice ring and the fork are made of pressed steel zinc plated finish. In brackets for wheels diameter 150, the swivel actions are made of a grease-lubricated double ball raceways. In brackets for wheels diameter 200, the swivel actions are made of a single direction axial bearing and a grease-lubricated single ball raceway. The king pin is made of stem with acme thread manufactured steel from tube, nut locked by mechanical deformation.
Series 60 Range
Uses
Suitable for trolleys and machinery with medium-duty loads, also in case of continuous
handling. Suitable for indoor and outdoor use with frequent washing and sterilisation.
Examples of recommended applications: trolleys for industrial use, tubular trolleys,
trolleys for food and chemical industry, mobile scaffoldings.
Suitable for trolleys and machinery with medium-duty loads, also in case of continuous
handling. Suitable for indoor and outdoor use with frequent washing and sterilisation.
Examples of recommended applications: trolleys for industrial use, tubular trolleys,
trolleys for food and chemical industry, mobile scaffoldings.
Technical features
LOAD CAPACITY: 120-450 daN
WHEEL TREAD: thermoplastic polyurethane tread; hardness 55 Shore D; excellent rolling resistance and elasticity, good resistance to wear and to tearing
CENTRE: polyamide 6
BRACKETS:
LOAD CAPACITY: 120-450 daN
WHEEL TREAD: thermoplastic polyurethane tread; hardness 55 Shore D; excellent rolling resistance and elasticity, good resistance to wear and to tearing
CENTRE: polyamide 6
BRACKETS:
| NL, | NL X, | M, | P, | P X, | TRAB |
Environments of use
Suitable for industrial environments, also in presence of water and saturated vapour, alcohol and glycol, mineral and organic acids.
Suitable for industrial environments, also in presence of water and saturated vapour, alcohol and glycol, mineral and organic acids.
| WEAK ACIDS |  |
WEAK BASES |  |
| STRONG ACIDS |  |
STRONG BASES | |
| WATER | |
HYDROCARBONS | |
| ALCOHOL | |
SOLVENTS | |
Floors
Suitable for tiles and cement-resin.
Not recommended unpaved floors or in the presence of processing residues.
Not suitable in the presence of obstacles, even if small.
They do not mark or damage fragile floors.
Suitable for tiles and cement-resin.
Not recommended unpaved floors or in the presence of processing residues.
Not suitable in the presence of obstacles, even if small.
They do not mark or damage fragile floors.
